Computer System Architecture MCQ - Digital Logic Circuits - Combinational Circuits

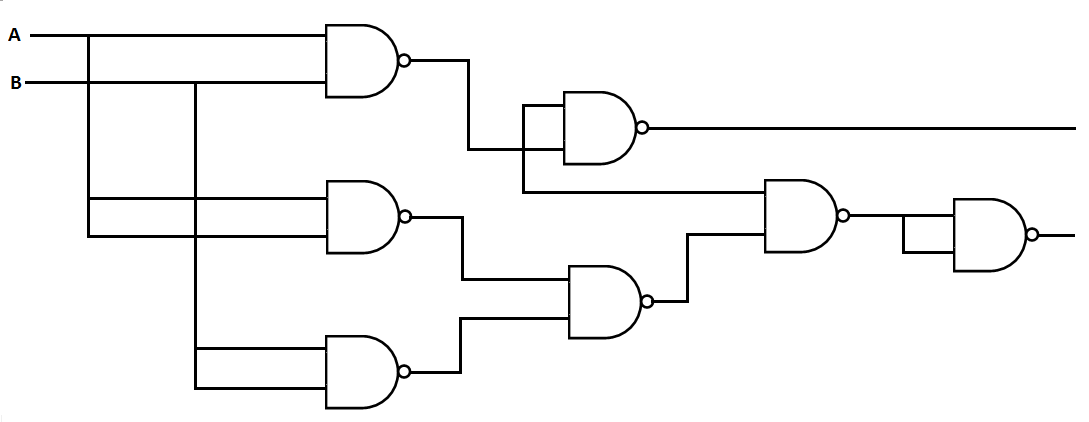

56 What logic function is performed by the circuit shown below? What logic dunction is performed by the circuit shown below

What logic dunction is performed by the circuit shown below

Here total 7 NAND gates are present and in half adder one AND and one EX-OR gate are required. In turn one EX-OR gate can be built by 5 NAND where as one AND gate can be built by 2 NAND gates so this is diagram of half adder. So the answer is (D).

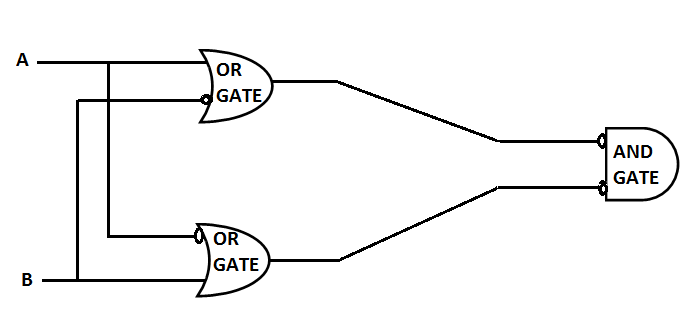

57 What is the Boolean expression for the following circuit? What is the boolean expresiion for the following circuit

What is the boolean expresiion for the following circuit

Ans is A as input to 1st OR gate is A, and B' so output of 1st OR gate is (A+B') In the same way output for 2nd OR gate is (A'+B) So Final output will be (A+B')'. (A'+B)'

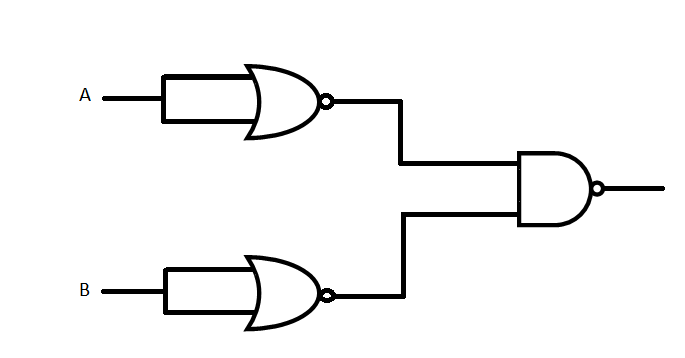

58 In the circuit shown below, which logic function does this circuit generate?

In the circuit shown below, which logic function does this circuit generate

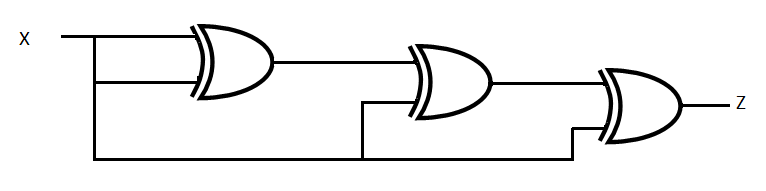

59 Output of the following circuit is

Output of the following circuit is

Truth Table for XOR

Truth table for XOR

60 A small dot or circle printed on top of an IC indicates
