PREVIOUS YEAR SOLVED PAPERS - JULY 2016 Paper 2
6. Which of the following logic expressions is incorrect?
- Option : C
- Explanation : We know that x ⊕ y = x`y + xy` So,
- 1 ⊕ 0 = 1`0 + 10` = 0 * 0 + 1 * 1 = 0 + 1 = 1
- 1 ⊕ 1 ⊕ 1 = (1 ⊕ 1) ⊕ 1 = (1`1 + 11`) ⊕ 1 = (0) ⊕ 1 = 1`0 + 10` = 0 * 0 + 1 * 1 = 0 + 1 = 1
- 1 ⊕ 1 ⊕ 0 = 1 ⊕ (1 ⊕ 0 ) = 1 ⊕ ( 1`0 + 10` = 0 * 0 + 1 * 1 = 0 + 1 ) = 1 ⊕ 1 = 1`1 + 11` = 0
- 1 ⊕ 1 = 1`1 + 11` = 0
You must be logged in to post a comment.
- Option : D
- Explanation : The IEEE-754 double-precision format to represent floating point numbers, has a length of 64 bits. 1 bit for sign, 11 bit for exponent and rest 52 is for fraction. So, option (D) is correct.
You must be logged in to post a comment.
You must be logged in to post a comment.

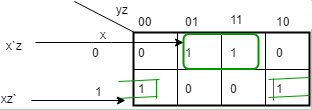

8. Simplified Boolean equation for the following truth table is:
| x | y | z | F |
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 0 | 1 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 0 |
- Option : C
- Explanation :
So, option (C) is correct.
You must be logged in to post a comment.
You must be logged in to post a comment.
9. The simplified form of a Boolean equation(AB'+AB'C+AC) (A'C'+B') is :
- Option : A
- Explanation : (AB` + AB`C + AC) (A`C` + B`) = AB` +AB`C +AB`C = AB` +AB`C = AB`(1 + C) = AB` So, option (A) is correct.
You must be logged in to post a comment.
You must be logged in to post a comment.
- Option : D
- Explanation :
