PREVIOUS YEAR SOLVED PAPERS MCQ - GATE 2017 Shift 2

16 Let p, q, r denote the statement “It is raining”, “It is cold”, and “It is pleasant”, respectively. Then the statement “It is not raining and it is pleasant, and it is not pleasant only if it is raining and it is cold” is represented by:

It is not raining (~p) and it is pleasent (r) : (¬p ∧ r)
It is raining (p) and it is cold (q) : (p∧q)
it is not pleasant (¬r) only if it is raining and it is cold : ¬r → (p∧q)
So the answer should be- (¬ p ∧ r) ∧ ((¬ r → (p ∧ q))
So, option (A) is true.

17 The Breadth First Search (BFS) algorithm has been implemented using the queue data structure. Which one of the following is a possible order of visiting the nodes in the graph below? if P is root Node.

BFS: Start at root (some arbitrary node of a graph, sometimes referred to as “search key”) and explore the neighbor nodes first, before and moving to the next level neighbors.
by using this we have different :
POQNMR or PQOMNR
So only D is correct answer

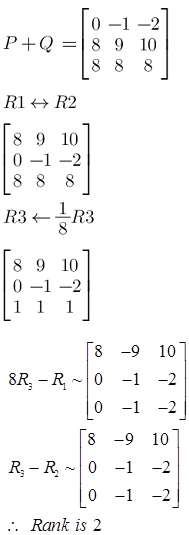

18 Let P =

and Q =

be two matrices.
Then the rank of P + Q is ____.

Note – Numerical Type question

19 Consider socket API on a Linux machine that supports connected UDP sockets. A connected UDP socket is a UDP socket on which connect function has already been called. Which of the following statements is/are CORRECT?
I. A connected UDP socket can be used to communicate with multiple peers simultaneously.
II. A process can successfully call connect function again for an already connected UDP socket.

A process with a connected UDP socket can call connect again for that socket for one of two reasons:
(1) To specify a new IP address and port.
(2) To unconnect the socket.

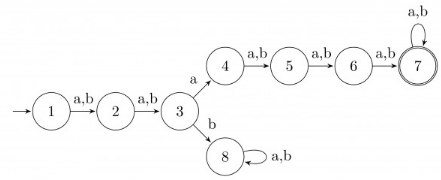

20 The minimum possible number of states of a deterministic automaton that accepts the regular language L = {w₁aw₂ | w₁, w₂ ∈ {a,b}*, |w₁|=2,|w₂|≥3} is _____.

Note – Numerical Type question

Answer is 8 states included one trap state(8)and final state(7).

3rd symbol from start is an 'a'
